Easily share your 3-prong (NEMA 10-30) dryer outlet with your EV charger! Commonly needed for your NEMA 14-50 EV charger (EVSE) when purchasing a NEMA 10-30 Smart Splitter.

• Male Plug: 30 Amp NEMA 10-30P 240 Volt for dryer plug.
• Female Connector: 50 Amp NEMA 14-50R 240 Volt compatible with all EVs.

• Male Plug: 30 Amp NEMA 14-30P, 240 Volt for dryer plug.
• Female Connector: 50 Amp NEMA 14-50R 240 Volt compatible with all EVs.

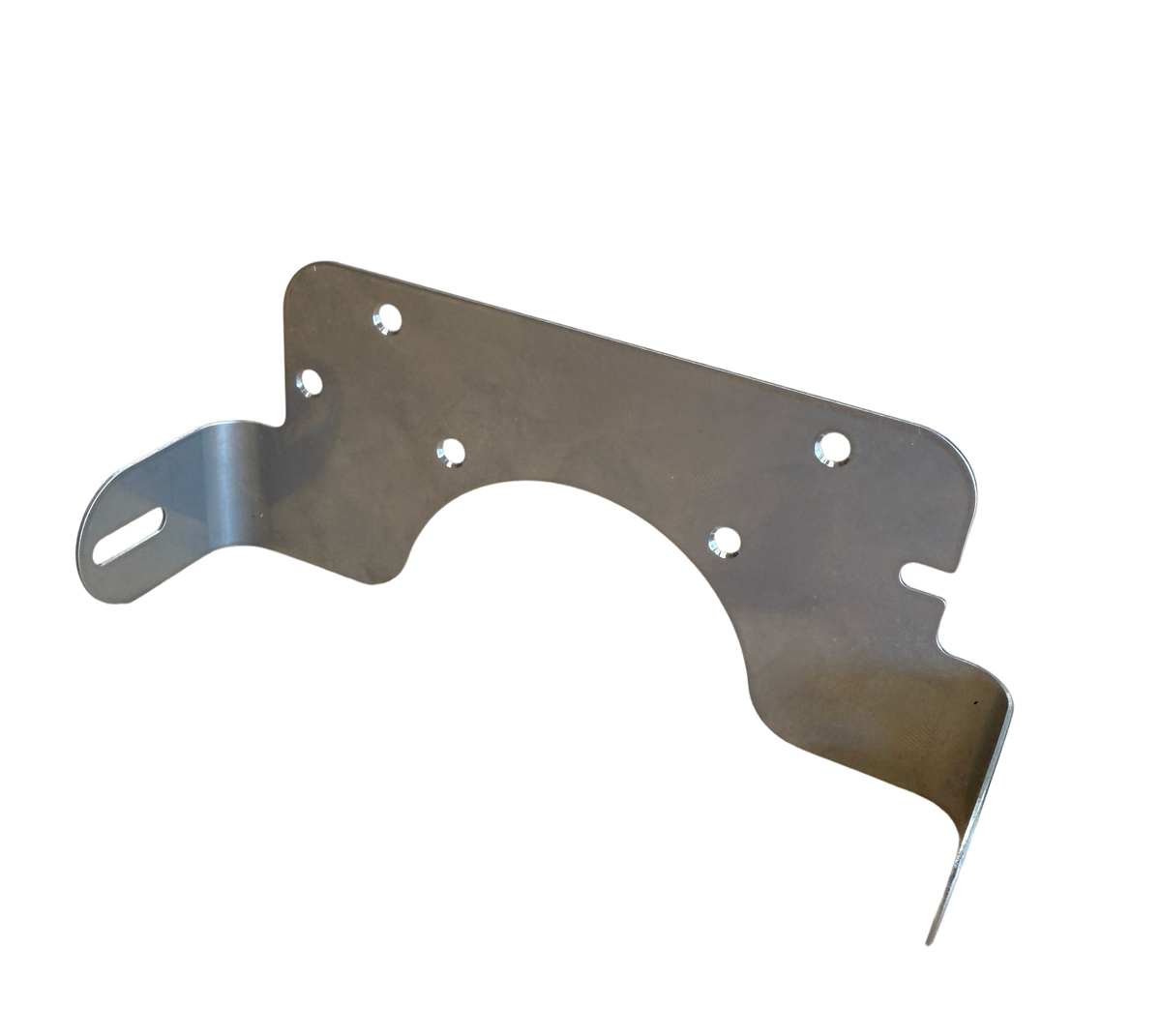

***All Smart Splitters come with a mounting bracket included in the box. The included mounting bracket is determined by the most common faceplate configurations used by that outlet type.***

Standard - 2.0 inch diamter:

The Standard sized mounting bracket is included with the following Smart Splitter models:

• NEMA 10-30
• NEMA 10-50
• NEMA 6-50

The 2" diameter mounting bracket is compatible with all standard 2" outlet faceplates. The bracket features 3 screw holes, compatible for both one and two gang faceplates.

Commercial - 2.5 inch diamter:

The commercial sized 2.5" mounting bracket is included with the following Smart Splitter models:

• NEMA 14-30
• NEMA 14-50

The 2.5" diameter mounting bracket is compatible with all 2-screw faceplates for both 2" and 2.5" outlets. These outlets come in both standard and commercial grade models, but generally only use faceplates that have 2 screw holes above and below the outlet.

The most common commercial outlets with the larger (2.5") diameter are made by the following brands:

• Hubbell
• Bryant Electric

• Enerlites
