NeoCharge Smart Splitter
SELECT THE SMART SPLITTER TO FIT YOUR EXISTING 240V OUTLET:
Product Details
Product Details

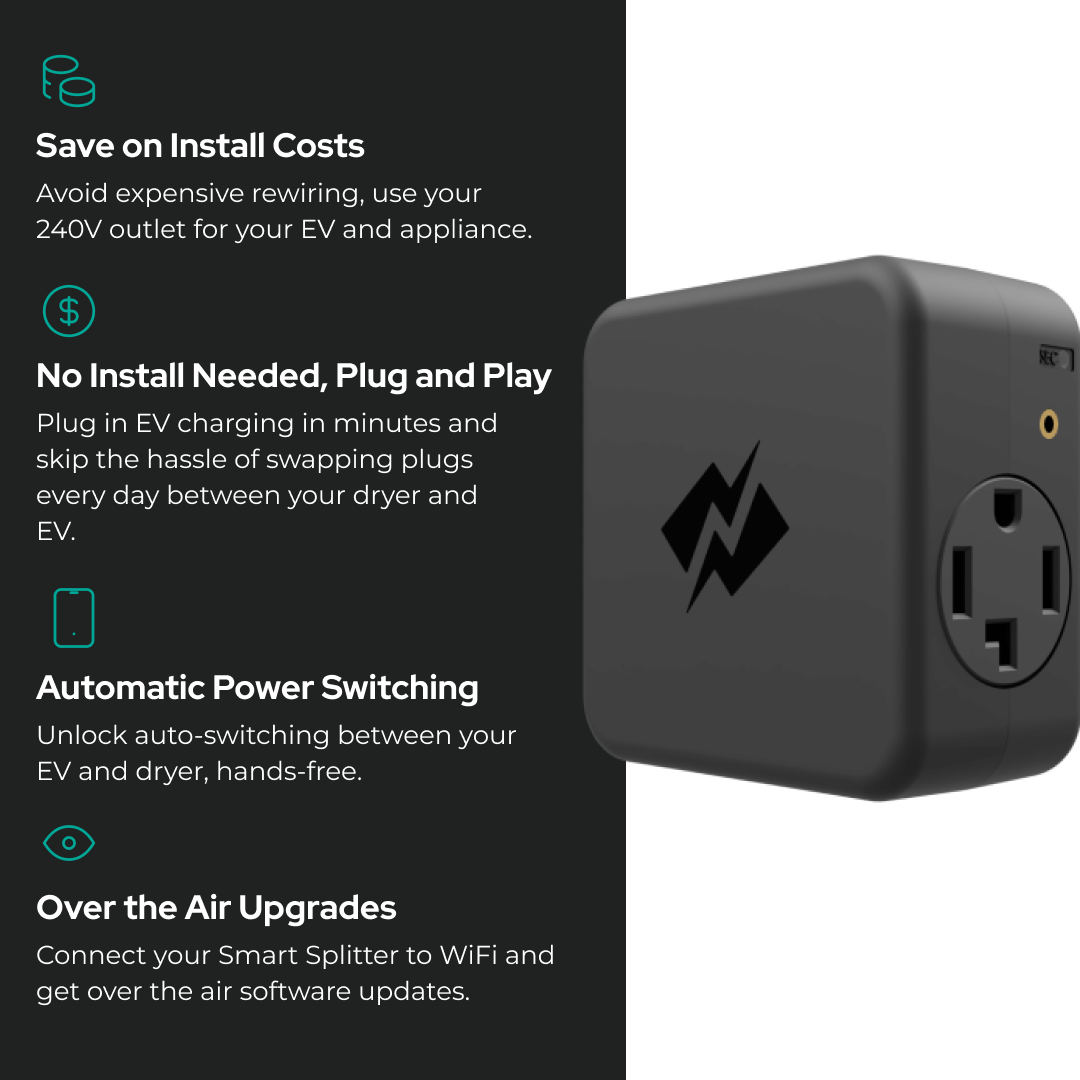

The Smart Splitter plugs into your existing 240V outlet for easy circuit sharing between your appliance and EV or two EVs. No installation needed.
- Unlock Smart EV charging optimization with the NeoCharge App.
- AVOID Expensive Panel Upgrades and Rewiring.
- SMART AUTO-SWITCHING, So You Don't Have To.
- UL Safety Certified.
- SELF Plug-In Installation.
- WiFi Enabled for Troubleshooting and Firmware Upgrades.
- Up to 7x FASTER Charging Access
- Track your home EV charging and energy costs.
Utility Rebates
Utility Rebates
The Smart Splitter is widely elligible for utility rebates across the US and Canada! We partner with utility companies to provide access to EV Charging and home electrification without the need for panel upgrades and rewiring.
Some of the utilities we work with include:
- PG&E
- BC Hydro
- SMUD
- ...and many more!
United States: Click Here to view applicable rebates and tax credits in your area using the Upfront Estimate.
Canada: The Smart Splitter is currently eligible for a $200 CND rebate through BC Hydro. Learn More.
We are constantly working to partner with more utilities and bring accessible charging to all areas across North America. Many more to come!
Shipping Policies: Free Shipping in US
Shipping Policies: Free Shipping in US
United States: Smart Splitters are shipped out from our fulfillment centers located across the US. All domestic Smart Splitter purchases qualify for free 5-7 day shipping.
Canada: International shipments to Canada are subject to a $35 International Shipping Fee. Additional import duties such as the 5% GST and any provincial taxes will be assessed by the carrier during transportation.
3 Year Warranty
3 Year Warranty
All Smart Splitters are covers by our 3 Year Warranty.
View full Warranty and Returns Policies here
Technical Specifications
Technical Specifications
FOR INDOOR USE ONLY
24 amp
- Output Power - 24A/5.7kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-30P or NEMA 10-30P
- Output - 2x NEMA 14-30R or 2x NEMA 10-30R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
40 amp
- Output Power - 40A/9.6kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-50P, NEMA 10-50P, or NEMA 6-50P
- Output - 2x NEMA 14-50R, 2x NEMA 10-50R, or 2x NEMA 6-50R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
The Smart Splitter plugs into your existing 240V outlet for easy circuit sharing between your appliance and EV or two EVs. No installation needed.
- Unlock Smart EV charging optimization with the NeoCharge App.
- AVOID Expensive Panel Upgrades and Rewiring.
- SMART AUTO-SWITCHING, So You Don't Have To.
- UL Safety Certified.
- SELF Plug-In Installation.
- WiFi Enabled for Troubleshooting and Firmware Upgrades.
- Up to 7x FASTER Charging Access
- Track your home EV charging and energy costs.
The Smart Splitter is widely elligible for utility rebates across the US and Canada! We partner with utility companies to provide access to EV Charging and home electrification without the need for panel upgrades and rewiring.
Some of the utilities we work with include:
- PG&E
- BC Hydro
- SMUD
- ...and many more!
United States: Click Here to view applicable rebates and tax credits in your area using the Upfront Estimate.
Canada: The Smart Splitter is currently eligible for a $200 CND rebate through BC Hydro. Learn More.
We are constantly working to partner with more utilities and bring accessible charging to all areas across North America. Many more to come!
United States: Smart Splitters are shipped out from our fulfillment centers located across the US. All domestic Smart Splitter purchases qualify for free 5-7 day shipping.
Canada: International shipments to Canada are subject to a $35 International Shipping Fee. Additional import duties such as the 5% GST and any provincial taxes will be assessed by the carrier during transportation.
All Smart Splitters are covers by our 3 Year Warranty.
View full Warranty and Returns Policies here
FOR INDOOR USE ONLY
24 amp
- Output Power - 24A/5.7kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-30P or NEMA 10-30P
- Output - 2x NEMA 14-30R or 2x NEMA 10-30R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
40 amp
- Output Power - 40A/9.6kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-50P, NEMA 10-50P, or NEMA 6-50P
- Output - 2x NEMA 14-50R, 2x NEMA 10-50R, or 2x NEMA 6-50R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA

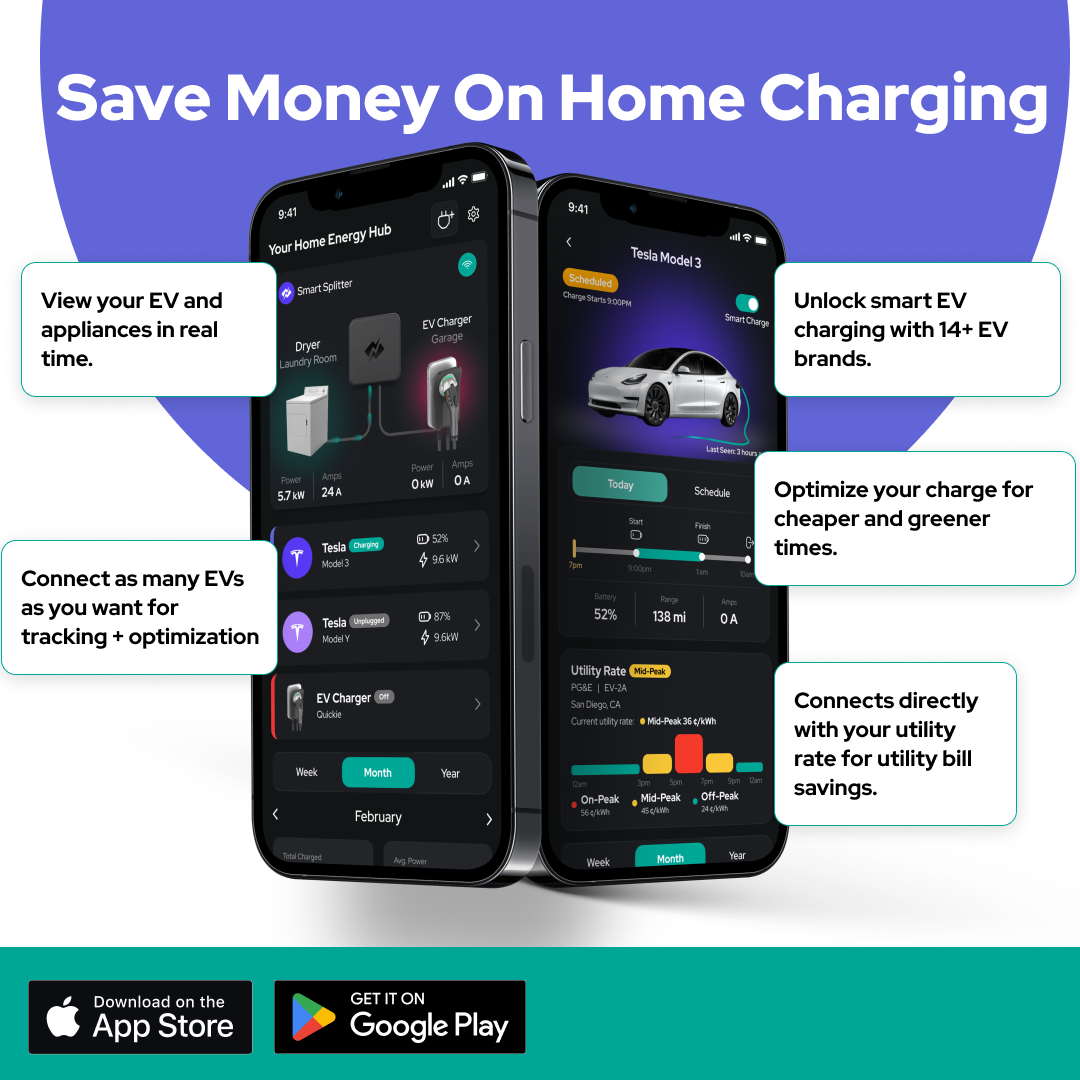

Reduce your EV Charging costs by up to 70% with Smarter Home Charging
Unlock smart EV charging optimization with your exact utility rate. Integrates with 14+ EV brands and enables advanced energy tracking with your EVs and appliances. Get FREE Access Today!
Track your EV Charging costs
Get Smart Charging and scheduling
Integrate your utility rate for more insights.
