NEMA 14-50 Smart Splitter - Dual EV
PRO TIP: Verify your 240V wall outlet matches the Smart Splitter before ordering.
What's in the Outlet Upgrade Bundle?
The Outlet Upgrade Bundle includes:
- The Smart Splitter™
- Industrial Grade NEMA 14-50R Outlet - Made by Hubbell and designed specifically for high loads such as EV Charging. This is the recommended wall receptacle for EV charging by certified electricians. Learn More
- The NeoCharge App - Optimize your charging schedules by integrating directly with your vehicle and utility rate. Users on a TOU rate plan save an average of $300+/year when connecting a compatible EV.
- The Ultimate Guide to Home EV Charging - 2024 Edition. Tips and exclusive discounts on EV Charging tech.
Wall outlets should be installed by an electrician before use.
What's in the Tesla Pro Bundle?
The Tesla Adapter Pro Bundle includes everything you need as a Tesla owner:
- The Smart Splitter™
- 14-50P Tesla adapter for Mobile Connector (Tesla Adapter ships separately)
- The NeoCharge App - Optimize your charging schedules by integrating directly with your vehicle and utility rate. Users on a TOU rate plan save an average of $300+/year when connecting a compatible EV.
- The Ultimate Guide to Home EV Charging - 2024 Edition. Tips and exclusive discounts on EV Charging tech.
Product Details
Product Details

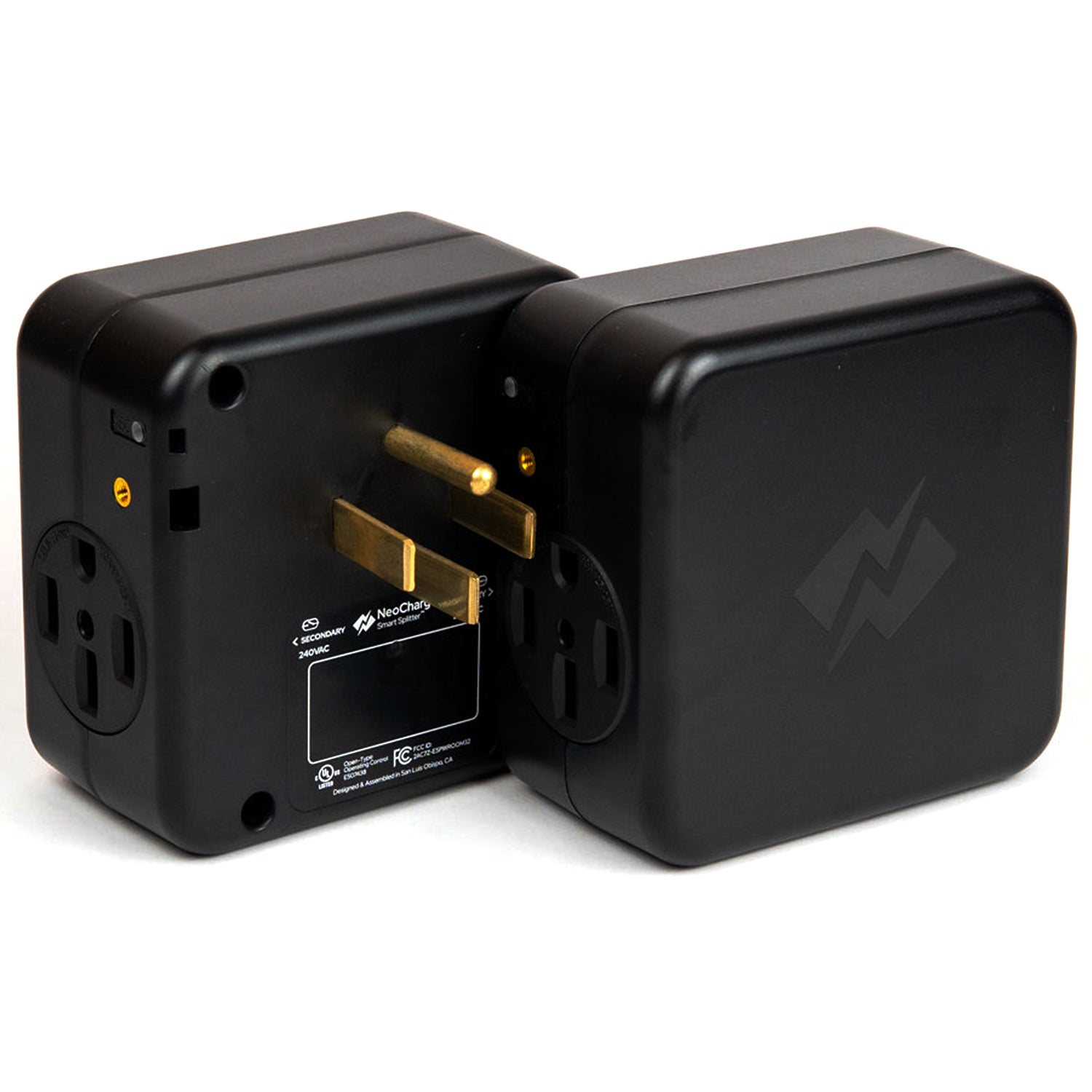

The NEMA 14-50 Smart Splitter plugs into your existing 240V outlet for easy circuit sharing between two EVs.
- AVOID Expensive Panel Upgrades and Rewiring.
- SMART AUTO-SWITCHING, So You Don't Have To.
- UL Safety Certified.
- SELF Plug-In Installation.
- WiFi Enabled to track all plugged in EV and Appliances on the NeoCharge App
- 7x FASTER Charging Access
Utility Rebates
Utility Rebates
The Smart Splitter is widely elligible for utility rebates across the US and Canada! We partner with utility companies to provide access to EV Charging and home electrification without the need for panel upgrades and rewiring.
Some of the utilities we work with include:
- PG&E
- BC Hydro
- SMUD
- ...and many more!
United States: Click Here to view applicable rebates and tax credits in your area using the Upfront Estimate.
Canada: The Smart Splitter is currently eligible for a $200 CND rebate through BC Hydro. Learn More.
We are constantly working to partner with more utilities and bring accessible charging to all areas across North America. Many more to come!
Shipping & Warranty
Shipping & Warranty
Shipping:
United States: Smart Splitters are shipped out from our fulfillment centers located across the US. All domestic Smart Splitter purchases qualify for FREE 5-7 day shipping.
Canada: International shipments to Canada are subject to a $35 International Shipping Fee. Additional import duties such as the 5% GST and any provincial taxes will be assessed by the carrier during transportation.
Warranty:
All Smart Splitters are covered by our 3 Year Warranty.
View full Warranty and Returns Policies here
What's In The Box
What's In The Box
Each NEMA 14-50 Smart Splitter includes:
- 1x NEMA 14-50 Smart Splitter
- 1x 2.5" diameter Mounting Bracket
- 2x Thumb Screws
- 2x Panhead Screws
- 2x Bracket Screws
Note:
The thumb and panhead screws are interchangeable when securing the bracket to the Smart Splitter.
- Thumb Screws: For quick plug-and-play
- Panhead Screws: A low profile option to avoid interfering with the orientation of larger plugs and cords. Screw driver required.
Technical Specifications
Technical Specifications
FOR INDOOR USE ONLY
- Output Power - 40A/9.6kW
- Input Voltage - 240 VAC nominal, single phase
- Circuit Breaker Rating - 50A
- Input - NEMA 14-50P
- Output - (2x) NEMA 14-50R
- Dimensions - 5.25" x 5.25" x 2.8" (does not include pins)
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
The NEMA 14-50 Smart Splitter plugs into your existing 240V outlet for easy circuit sharing between two EVs.
- AVOID Expensive Panel Upgrades and Rewiring.
- SMART AUTO-SWITCHING, So You Don't Have To.
- UL Safety Certified.
- SELF Plug-In Installation.
- WiFi Enabled to track all plugged in EV and Appliances on the NeoCharge App
- 7x FASTER Charging Access
The Smart Splitter is widely elligible for utility rebates across the US and Canada! We partner with utility companies to provide access to EV Charging and home electrification without the need for panel upgrades and rewiring.
Some of the utilities we work with include:
- PG&E
- BC Hydro
- SMUD
- ...and many more!
United States: Click Here to view applicable rebates and tax credits in your area using the Upfront Estimate.
Canada: The Smart Splitter is currently eligible for a $200 CND rebate through BC Hydro. Learn More.
We are constantly working to partner with more utilities and bring accessible charging to all areas across North America. Many more to come!
Shipping:
United States: Smart Splitters are shipped out from our fulfillment centers located across the US. All domestic Smart Splitter purchases qualify for FREE 5-7 day shipping.
Canada: International shipments to Canada are subject to a $35 International Shipping Fee. Additional import duties such as the 5% GST and any provincial taxes will be assessed by the carrier during transportation.
Warranty:
All Smart Splitters are covered by our 3 Year Warranty.
View full Warranty and Returns Policies here
Each NEMA 14-50 Smart Splitter includes:
- 1x NEMA 14-50 Smart Splitter
- 1x 2.5" diameter Mounting Bracket
- 2x Thumb Screws
- 2x Panhead Screws
- 2x Bracket Screws
Note:
The thumb and panhead screws are interchangeable when securing the bracket to the Smart Splitter.
- Thumb Screws: For quick plug-and-play
- Panhead Screws: A low profile option to avoid interfering with the orientation of larger plugs and cords. Screw driver required.
FOR INDOOR USE ONLY
- Output Power - 40A/9.6kW
- Input Voltage - 240 VAC nominal, single phase
- Circuit Breaker Rating - 50A
- Input - NEMA 14-50P
- Output - (2x) NEMA 14-50R
- Dimensions - 5.25" x 5.25" x 2.8" (does not include pins)
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
This product has no reviews yet.
Get Started with your Smart Splitter + NeoCharge Smart Charging App
Get Started with your Smart Splitter + NeoCharge Smart Charging App
UL Certified
5-7x Faster Charging
Auto Switching
Avoid Expensive Panel Upgrades
Smart Charging With the NeoCharge App
Unlock Fast, Hassle-Free Home Charging Access.
No Panel Upgrades
Smart Auto Switching
Plug and Play
No Rewiring
cUL certified
7x faster charging
HOW IT WORKS
Sequential or Simultaneous Charging
Sequential: Auto-Switching Between 2 EVs
With two EVs plugged in at maximum amperage (32-40 amps) the Smart Splitter will fully charge the EV on the Primary side before switching to the EV on the Secondary side.
Simultaneous: Dual EV Power Sharing
Set your EV charger(s) or EV(s) to 20 amps or less (half power) to allow for simultaneous EV Charging. The Smart Splitter ensures both cars can charge at once without tripping the breaker.
SELF INSTALLABLE IN MINUTES
Save Money By Avoiding Panel Upgrades
No need for an electrician to rewire your home just to add in another 240V outlet. The Smart Splitter is UL certified and can be installed yourself in under five minutes.
NO NEED TO SWAP PLUGS
The Easiest Way to Charge Two EVs
The Smart Splitter has intelligent circuit protection, so you don't have to swap your EV chargers every time you want to charge. Dual EV charging has never been easier.
Safe and Reliable for Your Home and Your EV
Certified for electrical safety by UL, the global leader in tech safety. The only UL listed Smart Splitter and built with an internal software breaker.
Works with Any EV
The Smart Splitter works with any EV. Trusted by tens of thousands of EV drivers and has been tested with all top-selling models: Chevrolet Bolt EV, Chevy Volt, Hyundai IONIQ 5, Kia EV6, Ford Mach-e, Rivian, Nissan LEAF, Tesla, Toyota Prius Prime, VW ID4, and many more.
CHECK YOUR HOME COMPATIBILITY
Which Smart Splitter is right for you?
Take this quick 3 minute survey to see if the Smart Splitter works for your home EV charging setup. Each NEMA outlet is different! Please make sure you verify your outlet before purchasing.
CHECK COMPATIBILITY
Accessories for the 14-50 Smart Splitter:
Need Further Help?
Find Home EV Charging Rebates
See what rebates may apply in your area. Several utilities offer rebates on the Smart Splitter uncluding PG&E, BC Hydro, SMUD, and many more.
Need An Electrician for Home EV Charging Installation?
No problem! We've partnered with Treehouse for easy home charging installation in California and Arizona.
Talk to Our EV Charging Experts
We are here to help! You can chat with us through the bubble in the bottom right corner if you have any questions. You can also find most of your questions answered in our FAQ.
